TLS / SSL Client Certificates

Fetch Client supports mutual TLS (mTLS) by allowing you to configure client certificates for specific HTTPS hosts. When a request is sent to a matching host, the configured certificate is automatically attached.

info

Client certificates are only used for HTTPS requests. HTTP requests ignore all TLS settings.

⚙️ How it works

When an HTTPS request is executed, Fetch Client performs the following steps:

Request
   │
   ▼
Is HTTPS?
   │
   ├── No → Send request normally
   │
   ▼
Load TLS configuration
   │
   ▼
Find matching certificate
   │
   ├── No match
   │      │
   │      ▼
   │   Use default HTTPS agent
   │
   ▼
Certificate found
   │
   ├── PEM
   │      ▼
   │   Load certificate + private key
   │
   └── PFX
          ▼
      Load PFX bundle

   ▼
Create HTTPS Agent
   │
   ▼
Cache HTTPS Agent
   │
   ▼
Send Request

📄 Supported Certificate Types

Fetch Client supports both PEM and PFX (PKCS#12) client certificates.

Certificate Type	Required Files	Description
PEM	Certificate (.pem/.crt) + Private Key (.key)	Standard OpenSSL certificate format.
PFX	Single .pfx or .p12 file	Contains both the certificate and private key.

🌐 Host Matching

Certificates are selected automatically based on the request hostname.

🎯 Exact Match

The configured host must exactly match the request hostname.

Example:

Configured Host:
api.company.com

Request:
https://api.company.com/users

✔ Client certificate is used

🌍 Wildcard Match

Wildcard hosts are also supported.

Example:

Configured Host:
*.company.com

Matches:
api.company.com
auth.company.com
test.company.com

Does not match:

company.com

⭐ Multiple Wildcards

If multiple wildcard certificates match a hostname, Fetch Client selects the most specific match.

Example:

Configured Host	Request	Selected
*.company.com	api.dev.company.com	❌
*.dev.company.com	api.dev.company.com	✅

The longest matching wildcard pattern always takes precedence.

🏆 Certificate Selection Order

When making an HTTPS request, Fetch Client searches for certificates in the following order:

1. Exact hostname match
2. Most specific wildcard match
3. No certificate (uses the default HTTPS agent)

🛡️ SSL Verification

Fetch Client allows you to enable or disable server certificate verification.

Setting	Behavior
Enabled	Validates the server certificate against trusted Certificate Authorities (recommended).
Disabled	Skips server certificate validation. Useful when working with self-signed certificates during development.

warning

⚠️ Disabling SSL verification reduces connection security and should only be used in development or testing environments.

⚡HTTPS Agent Caching

Creating an HTTPS agent requires reading certificate files from disk.

To improve performance, Fetch Client caches HTTPS agents after they are created.

The cache key includes:

• Host
• Certificate type
• Certificate file paths
• SSL verification setting

Subsequent requests reuse the cached HTTPS agent instead of reloading certificate files.

✨ Benefits

• Faster request execution
• Reduced disk I/O
• Lower memory allocations
• Better performance during repeated requests

✅ Certificate Validation

Before creating an HTTPS agent, Fetch Client validates the certificate configuration.

PEM Certificates

The following fields are required:

• Certificate path
• Private key path

If either field is missing, the request fails with an error.

PFX Certificates

The following field is required:

• PFX file path

If the file cannot be loaded, the request fails with an error.

❌ Common Errors

Error	Cause
Invalid PEM certificate configuration	Certificate or private key path is missing.
Invalid PFX certificate configuration	PFX file path is missing.
Unable to load certificate	Certificate file could not be read.
ENOENT	Certificate file does not exist.

📝 Configuration Examples

PEM Certificate

{
  "host": "api.company.com",
  "type": "pem",
  "certPath": "/certs/client.pem",
  "keyPath": "/certs/client.key",
  "passphrase": "secret",
  "enabled": true
}

PFX Certificate

{
  "host": "*.company.com",
  "type": "pfx",
  "pfxPath": "/certs/client.pfx",
  "passphrase": "secret",
  "enabled": true
}

---

⚙️ Fetch Client Configuration

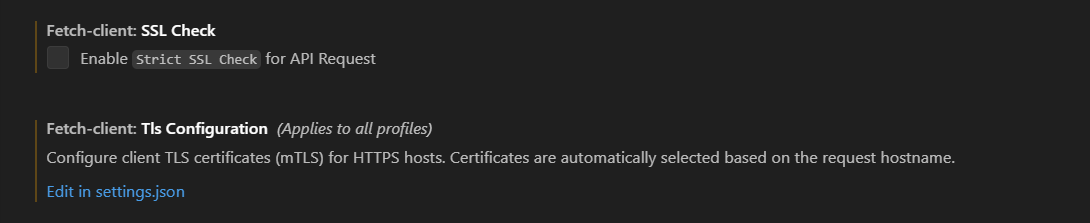

TLS certificates are configured through the Fetch Client Settings in Visual Studio Code.

🛠️ Open Settings

1. Open the Command Palette (Ctrl+Shift+P or Cmd+Shift+P).
2. Search for Fetch Client: Settings.
3. Locate the TLS Configuration section.
4. Add one or more client certificate configurations.

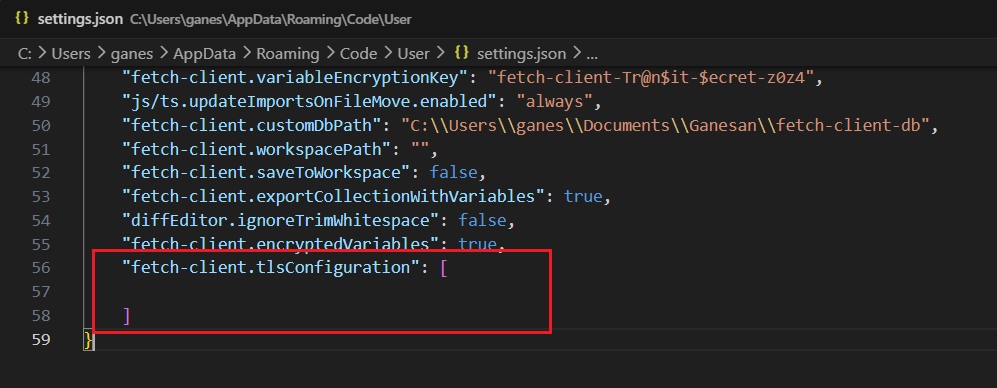

Alternatively, you can edit your settings.json file directly.

📝 Example Configuration

{
  "fetch-client.SSLCheck": true,
  "fetch-client.tlsConfiguration": [
    {
      "host": "api.company.com",
      "type": "pem",
      "certPath": "C:\\certs\\client.pem",
      "keyPath": "C:\\certs\\client.key",
      "passphrase": "secret",
      "enabled": true
    },
    {
      "host": "*.internal.company.com",
      "type": "pfx",
      "pfxPath": "C:\\certs\\client.pfx",
      "passphrase": "secret",
      "enabled": true
    }
  ]
}

⚙️ Configuration Options

Property	Required	Description
host	✅	Exact hostname or wildcard hostname used to select the client certificate (for example api.company.com or *.company.com).
type	✅	Certificate format. Supported values are pem and pfx.
certPath	PEM	Absolute path to the client certificate file.
keyPath	PEM	Absolute path to the private key file.
pfxPath	PFX	Absolute path to the PFX/PKCS#12 file.
passphrase	No	Passphrase used to decrypt the private key or PFX file, if required.
enabled	No	Enables or disables the certificate. Defaults to true.

info

💡 Multiple certificates can be configured. Fetch Client automatically selects the appropriate certificate based on the request hostname.

warning

🔒 The passphrase is stored in plain text in your VS Code settings.json. Consider using operating system file permissions to protect sensitive certificate files.

💡 Best Practices

• Keep SSL Verification enabled whenever possible.
• Use wildcard certificates only when multiple subdomains share the same client certificate.
• Prefer exact host mappings for better security.
• Store certificate files outside your project repository.
• Protect private keys with appropriate file permissions.
• Use passphrase-protected certificates whenever possible.
• Remove expired or unused certificates from your configuration.
