API Quality Gate

Analyse a single request, a folder, or an entire collection against 52 automated rules spanning 7 quality dimensions - Functional, Security, Performance, Design, Observability, Test Coverage, and Maintainability. Get a weighted 0-100 score, a PASS / CONDITIONAL PASS / FAIL verdict, a per-issue breakdown with concrete fixes, and a separate CI/CD gate status you can wire into a build pipeline.

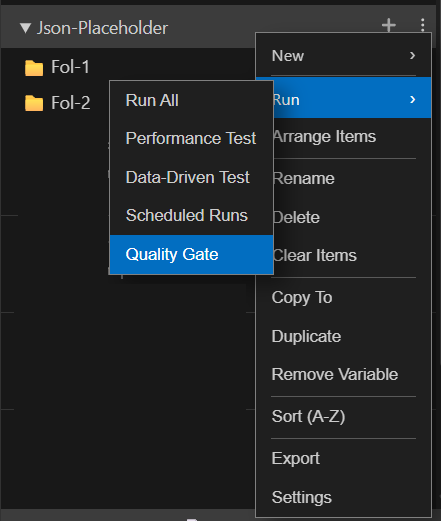

📂 Opening the Quality Gate panel

Entry point	Resulting scope
Right-click a Collection, Folder, or Request → Tools → API Quality Gate	Whole Collection / Folder (you choose which requests to include), or a single Request

The panel opens with three tabs: Rules (choose which checks run), Requests (choose which requests are analysed - collection/folder scope only), and Result (the live report, populated once you run the gate).

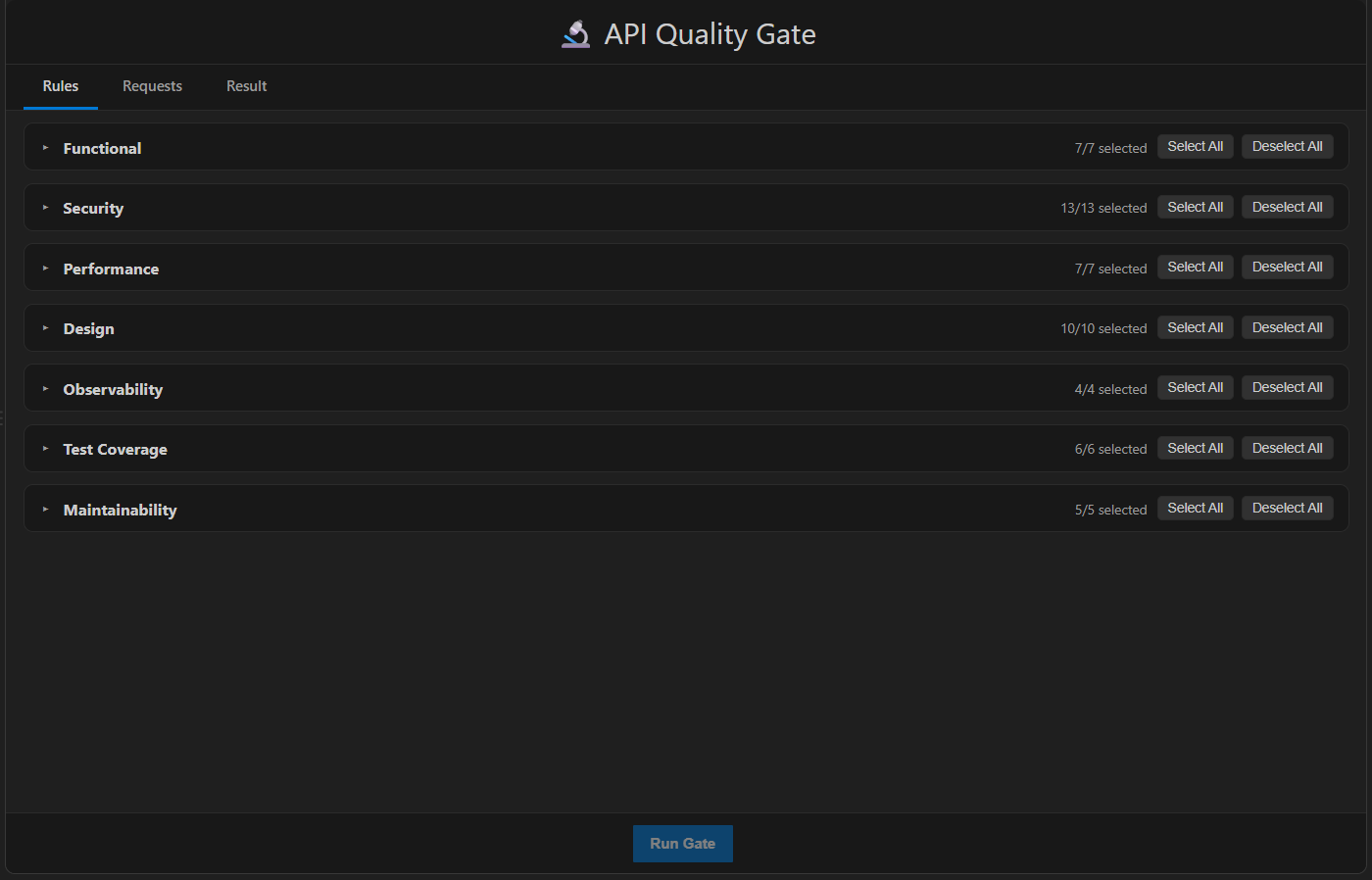

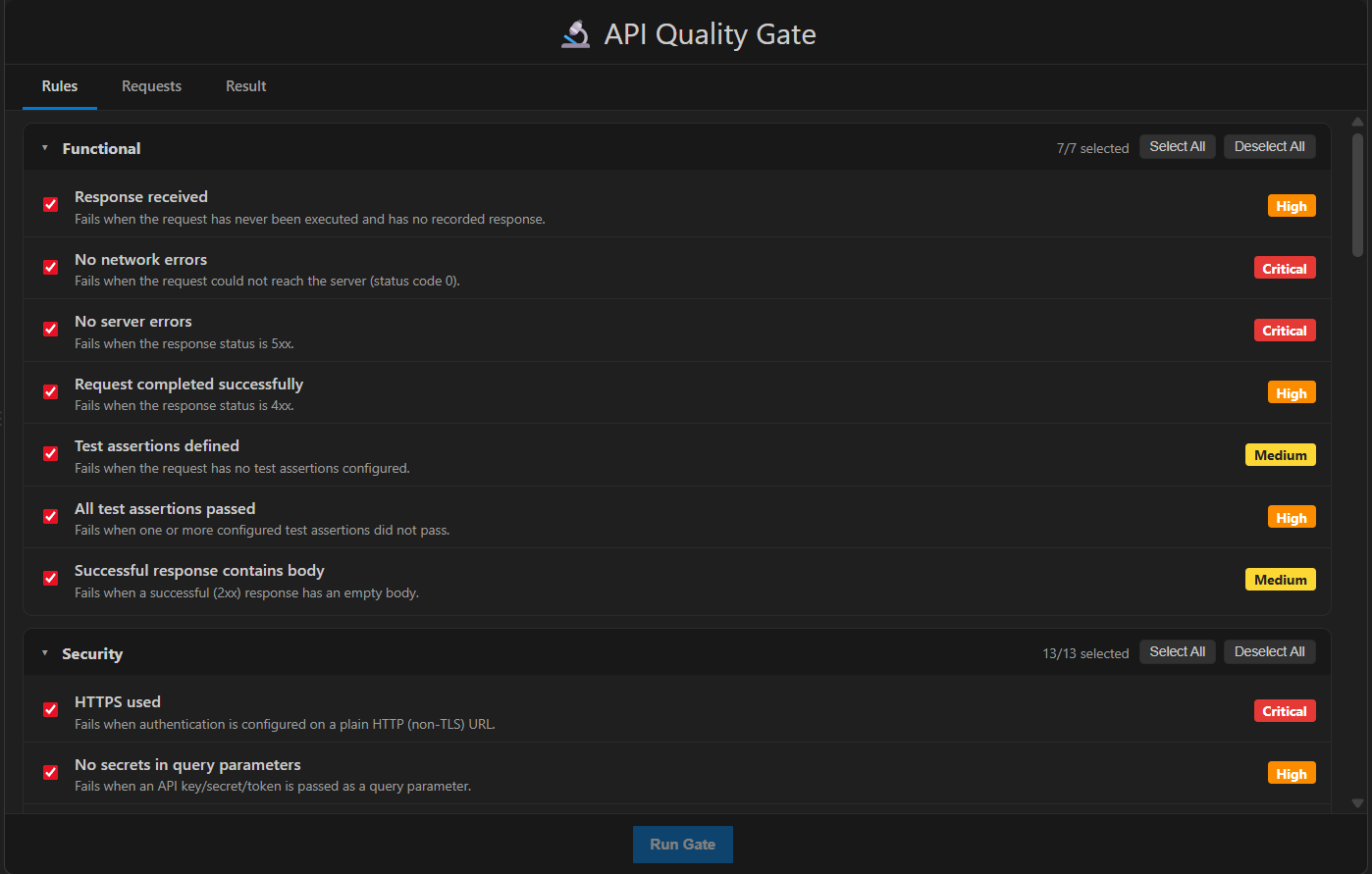

📏 Rules tab

Every rule is listed, grouped by dimension, with a checkbox. Use it to permanently turn rules on/off for this workspace:

• Per-dimension header shows how many rules are currently selected (e.g. "9/13 selected") and gives Select All / Deselect All buttons for that dimension.
• Each rule row shows its name, description, and default severity badge.
• Selections are written to .qgrc.json at the workspace root (disabledRules) as soon as you toggle a checkbox, and are picked up by every run for that workspace.

info

Note: disabling a rule here removes it from evaluation entirely - it produces no issue and isn't counted anywhere, including in exports. If you want a rule to still be evaluated and audited, use an inline @qg-disable tag instead (see Suppressing rules below).

<sup>Expand Rules


Collapse Rules</sup>

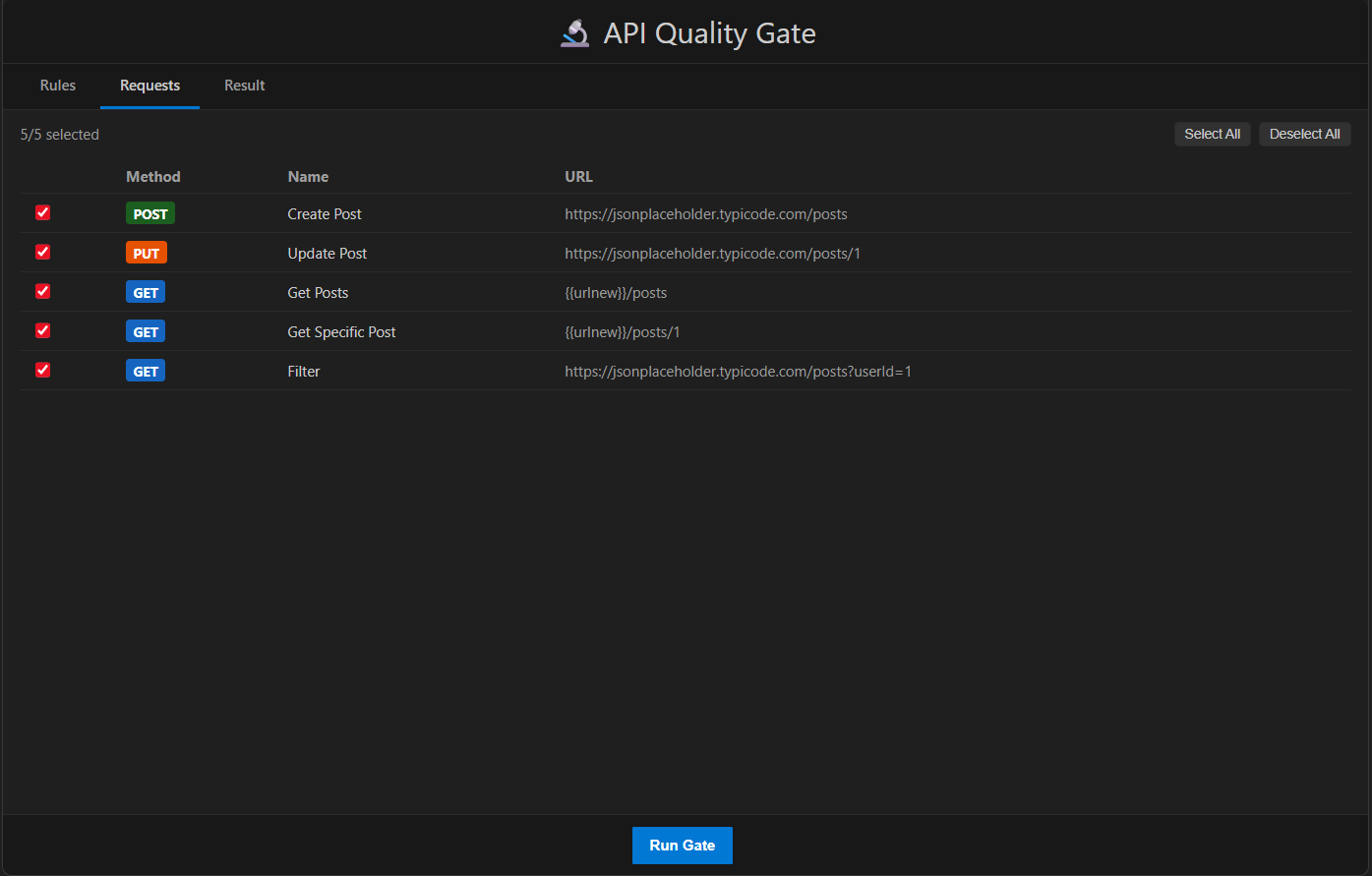

📋 Requests tab

• Single Request scope - this tab simply confirms that request will be analysed; there's nothing to select.
• Collection / Folder scope - a checkbox table lists every request in scope (method, name, URL). Use Select All / Deselect All, or check individual rows. Run Gate stays disabled until at least one request is selected.

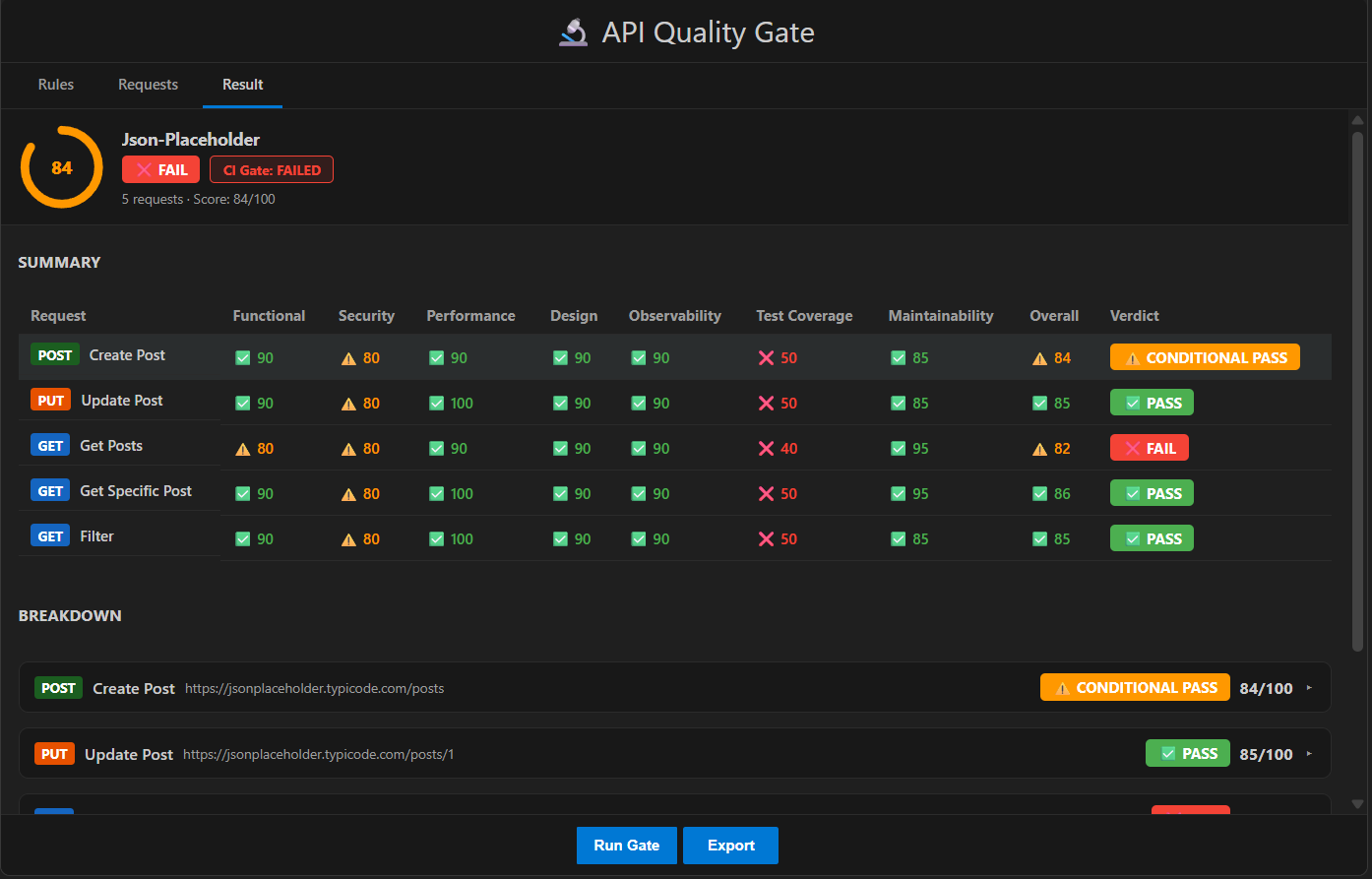

📊 Result tab

1. Go to the Rules tab and enable/disable checks as needed (optional - all rules run by default).
2. Go to the Requests tab and confirm/select which requests to include (collection/folder scope only).
3. Click Run Gate in the footer. You're switched to the Result tab automatically.
4. While running, a spinner shows "Analysing API quality…".
5. When finished, the aggregate banner, summary table, and per-request breakdown populate.
6. Use the Export dropdown in the footer to save the report once it's available.

🧭 Aggregate banner

• A score ring shows the aggregate score (0-100), colour-coded: green ≥ 85, orange 70-84, red < 70.
• A verdict badge (✅ PASS / ⚠️ CONDITIONAL PASS / ❌ FAIL) for the whole run.
• A CI Gate badge (PASSED / FAILED) - hover it to see the specific reasons it failed, if any. This is independent of the verdict badge; see CI/CD gate status.
• Request count and aggregate score.

📋 Summary table

One row per request, one column per dimension, plus Overall and Verdict. Each score cell shows an icon and colour: ✅ green (≥ 85), ⚠️ orange (70-84), ❌ red (< 70) - so you can scan for weak spots across an entire collection at a glance.

🧩 Breakdown (per request)

Click a request to expand it:

• Severity pills - Critical / High / Medium / Low counts for that request.
• Dimension cards - one per dimension, each with its own score bar and issue count. Expand a card to see:
  • The full list of issues, each with severity, description, and (click to expand) impact, recommendation, and a suggested fix where one applies.
  • A Passed Rules / Failed Rules list, so you can see exactly which checks ran and which side of the line each landed on.
• A note when any issues were suppressed by an inline @qg-disable tag, with a count.

🎯 The 7 quality dimensions

Dimension	Default weight	What it evaluates
Functional	0.20	Whether the request actually works: reachable, no 4xx/5xx, has a response body, test assertions defined and passing
Security	0.20	Auth, secrets, headers, CORS, and leaked data - mapped to relevant OWASP API Security Top 10 items
Performance	0.15	Response time, payload size, caching, compression, pagination
Design	0.15	REST/URL conventions - casing, versioning, verbs, resource identifiers, content types, error shapes
Observability	0.10	Whether responses are debuggable - correlation IDs, content type, structured error messages/codes
Test Coverage	0.10	Whether the request has assertions covering status, body, headers, and timing, and whether they pass
Maintainability	0.10	Naming, documentation, and use of variables instead of hardcoded values/tokens

Weights are configurable per workspace via .qgrc.json (see Configuration) and must sum to 1 for the overall score to stay on a 0-100 scale.

⚖️ Scoring model

Each failed rule deducts points from its dimension's score, based on the issue's severity:

Severity	Deduction
Critical	-40
High	-20
Medium	-10
Low	-5

A dimension's score is 100 - (sum of deductions for its issues), floored at 0. The overall score is the weighted average of all seven dimension scores, rounded to the nearest whole number.

🚦 Verdicts

Verdict	Condition
❌ FAIL	Any Critical-severity issue exists or overall score is below the conditional-pass threshold (default 70)
⚠️ CONDITIONAL PASS	No Critical issues, and score is at or above 70 but below the pass threshold (default 85)
✅ PASS	No Critical issues, and score is at or above 85

A single Critical issue always forces a FAIL, regardless of the overall score - this can't be overridden by weights.

For a collection/folder run, the aggregate verdict is computed the same way, using the average of every request's score and whether any request has a Critical issue.

🛑 CI/CD gate status

gateStatus is a separate pass/fail signal, independent of the PASS/CONDITIONAL PASS/FAIL verdict, meant for build pipelines:

Field	Meaning
passed	true/false
exitCode	0 if passed, 1 if not - use directly as a process exit code in CI scripts
reasons	Human-readable list of what failed the gate

By default the gate fails if there's more than 0 Critical issues across the whole report, or the aggregate score is below the conditional-pass threshold (70). Both are configurable via failOn in .qgrc.json:

failOn field	Default	Meaning
critical	0	Max Critical issues allowed (report-wide) before the gate fails
high	unlimited	Max High-severity issues allowed (report-wide)
minScore	equal to thresholds.scoring.conditionalScore	Minimum aggregate score required

🔇 Suppressing rules

There are two independent ways to turn a rule off, and they behave differently:

Method	Where	Effect
Rules tab checkbox / .qgrc.json → disabledRules	Workspace-wide, persistent	Rule is skipped entirely - not evaluated, no issue, nothing recorded, excluded from every export
Inline @qg-disable tag	In a single request's Notes field	Rule is still evaluated. If it would have failed, the issue is recorded with suppressed: true - excluded from scoring and verdicts, but kept visible in the UI and exports for audit purposes

Inline tag syntax (place anywhere in the request's Notes):

@qg-disable security/no-auth-mutation   // one specific rule
@qg-disable security                    // an entire dimension
@qg-disable *                           // every rule, for this request only

📚 Rule reference

Functional (7 rules)

Rule	Default severity	Checks
Response received	High	The request has been run at least once and has a recorded response
No network errors	Critical	Status code isn't 0 / no connection error
No server errors	Critical	Status isn't 5xx
Request completed successfully	High	Status isn't 4xx
Test assertions defined	Medium	At least one test assertion is configured
All test assertions passed	High	No configured test assertion is currently failing
Successful response contains body	Medium	A 2xx (non-204/304) response on a non-HEAD/DELETE request isn't empty

Security (13 rules)

Rule	Default severity	Checks
HTTPS used	Critical	Auth isn't configured on a plain http:// URL
No secrets in query parameters	High	No API key/token/secret/password passed as a query param
No sensitive data in URL	Critical	No password/secret/token/credential keyword in the URL path
Authentication configured	High	POST/PUT/PATCH/DELETE (non-GraphQL) endpoints have auth configured
Bearer token uses variables	High	A configured Bearer token isn't a hardcoded value
Avoid Basic Authentication	Medium	Request doesn't use Basic Auth
Response contains x-content-type-options	Medium	Response includes X-Content-Type-Options: nosniff
Response contains x-frame-options	Medium	Response includes X-Frame-Options
Response contains strict-transport-security	Medium	Response includes HSTS header
No stack traces in response	High	Response body doesn't contain a stack-trace pattern
No sensitive secrets in response body	Critical	Body doesn't match AWS keys, JWTs, private keys, or secret/password fields
No CORS wildcard on mutations	Medium	Access-Control-Allow-Origin: * isn't used on a non-GET response
No CORS wildcard with credentials	Critical	Wildcard origin isn't combined with Access-Control-Allow-Credentials: true

Performance (7 rules)

Rule	Default severity	Checks
Response within timeout	Critical	Duration is below the timeout threshold (default 5000 ms)
Response time acceptable	Medium (escalates to High)	Duration is below the "slow" (500 ms) / "very slow" (2000 ms) thresholds
Payload size optimized	Medium (escalates to High)	Response size is below the warn (100 KB) / fail (1 MB) thresholds
Cache-Control configured	Medium	GET responses include Cache-Control
Conditional caching enabled	Low	GET responses include ETag or Last-Modified
Response compression enabled	Medium	GET responses over the compression threshold (10 KB) include Content-Encoding
Pagination implemented	Medium	List-style endpoints (/list, /all, /items, /results, /search) accept a pagination parameter

Design (10 rules)

Rule	Default severity	Checks
Lowercase URL path	Medium	Path contains no uppercase letters
Use hyphens instead of underscores	Low	Path segments don't use underscores
API versioning implemented	Medium	URL path or Api-Version header indicates a version
GET request has no body	High	GET requests don't send a body
GET endpoint is read-only	High	GET URLs don't contain mutation verbs (create/update/delete/…)
Resource-oriented URL naming	Medium	Path doesn't use verb-style segments (/getUser, …)
Clean resource URLs	Medium	URL has no technology-specific extension (.php, .asp, .jsp, …)
DELETE targets a specific resource	Medium	DELETE path includes a resource identifier
JSON request declares Content-Type	Medium	A JSON body is sent with a matching Content-Type header
Standard error response format	Low	Non-GraphQL 4xx/5xx bodies follow RFC 7807 or { code, message }

Observability (4 rules)

Rule	Default severity	Checks
Correlation ID returned	Medium	Response includes a correlation/trace header (X-Request-ID, X-Correlation-ID, traceparent, Request-ID)
Content-Type header returned	Medium	Response includes Content-Type
Error response includes message	Low	4xx/5xx JSON bodies include message, error, or title
Error response includes code	Low	4xx/5xx JSON bodies include code or errorCode

Test Coverage (6 rules)

Rule	Default severity	Checks
Tests defined	High	At least one test assertion is configured
Status code assertion	Medium	A "Response Code" assertion exists
Response body assertion	Medium	A body / JSON-body / custom assertion exists
Response time assertion	Low	A "Response Time" assertion exists
Response header assertion	Low	A "Response Header" assertion exists
All tests passed	Critical	No configured assertion is currently failing

Maintainability (5 rules)

Rule	Default severity	Checks
Request has a meaningful name	Medium	Request name isn't empty
Request contains documentation	Low	Notes/description field isn't empty
URL uses environment variables	Medium	URL contains at least one {{variable}}
Authentication uses variables	High	A configured Bearer token isn't hardcoded
No empty headers	Low	No enabled header has an empty key or value

⚙️ Configuration (.qgrc.json)

Placed at the root of your workspace, this file is optional - every field falls back to a sensible default, and the Rules tab writes to it automatically when you toggle checkboxes.

{
  "thresholds": {
    "performance": {
      "slowMs": 500,
      "verySlowMs": 2000,
      "timeoutMs": 5000,
      "payloadWarnBytes": 102400,
      "payloadFailBytes": 1048576,
      "compressionThresholdBytes": 10240
    },
    "scoring": {
      "passScore": 85,
      "conditionalScore": 70
    }
  },
  "weights": {
    "Security": 0.3,
    "Functional": 0.2
  },
  "disabledRules": ["design/underscore-path"],
  "failOn": {
    "critical": 0,
    "high": 5,
    "minScore": 75
  }
}

Setting	Default	Description
thresholds.performance.slowMs	500	Response time (ms) above which a request is flagged Medium
thresholds.performance.verySlowMs	2000	Response time (ms) above which a request is flagged High
thresholds.performance.timeoutMs	5000	Response time (ms) above which a request is flagged Critical
thresholds.performance.payloadWarnBytes	102400 (100 KB)	Payload size above which a Medium warning is raised
thresholds.performance.payloadFailBytes	1048576 (1 MB)	Payload size above which a High warning is raised
thresholds.performance.compressionThresholdBytes	10240 (10 KB)	GET response size above which missing compression is flagged
thresholds.scoring.passScore	85	Minimum overall score for a PASS verdict
thresholds.scoring.conditionalScore	70	Minimum overall score to avoid FAIL
weights	see dimensions table	Per-dimension weighting of the overall score - only override the dimensions you want to change; others keep their default
disabledRules	[]	Rule ids, dimension names, or "*" to skip entirely (same as the Rules tab)
failOn.critical	0	Max Critical issues allowed before the CI gate fails
failOn.high	unlimited	Max High issues allowed before the CI gate fails
failOn.minScore	equal to conditionalScore	Minimum aggregate score required for the CI gate to pass

You don't need to include every field - only what you want to override.

🧪 How requests are evaluated

• If a request has a saved response (from a previous manual run), the gate analyses that response - nothing is re-executed.
• If a request has no saved response, it's run live as part of the gate, through a shared runner (runLiveQualityGateRequest) that performs the full pipeline in one go:
  1. Its configured pre-request chain runs first - collection/folder-level, then request-level (e.g. token setup) - and any variable updated by that chain is picked up before the main request fires.
  2. The main request fires directly, and only its own duration is measured and used for the Performance dimension.
  3. If the request has test assertions configured, they're executed against the live response and attached as testResults - so Functional → All test assertions passed and every Test Coverage rule reflect the real, current outcome, not just whatever was last saved.
  4. If the request has set-variable rules configured, they run against the live response, same as a normal manual Run.

This runner is shared between the extension's Quality Gate panel and the fc-cli qc command-line tool, so a live-evaluated request behaves identically - same pre-requests, same test execution, same variable updates - whichever surface triggers it.

📤 Exporting results

Once a report is available, use the Export dropdown in the footer:

Format	Best for
JSON	A complete record of the run - config used, aggregate metrics, every dimension/rule/issue, and suppressed issues. Good for archiving or feeding into another tool.
CSV	Summary metrics in a spreadsheet-friendly format, for quick sharing or comparing runs.
HTML	A shareable, readable report you can open in a browser or send to teammates.
XML	A structured export for tools that expect XML.

⚠️ Limitations

• The gate reflects the response as recorded or as observed from your machine during a live run - it isn't a substitute for server-side APM or a dedicated security scanner.
• Rules disabled via .qgrc.json / the Rules tab are skipped entirely and never appear in results or exports; only inline @qg-disable tags are tracked as suppressed issues.
• A live-evaluated request that has set-variable rules will update your variable set as a side effect of running the gate, just like a normal manual Run would.
• Weights should sum to 1 to keep the overall score on a true 0-100 scale; the panel doesn't enforce this if you override them in .qgrc.json.
